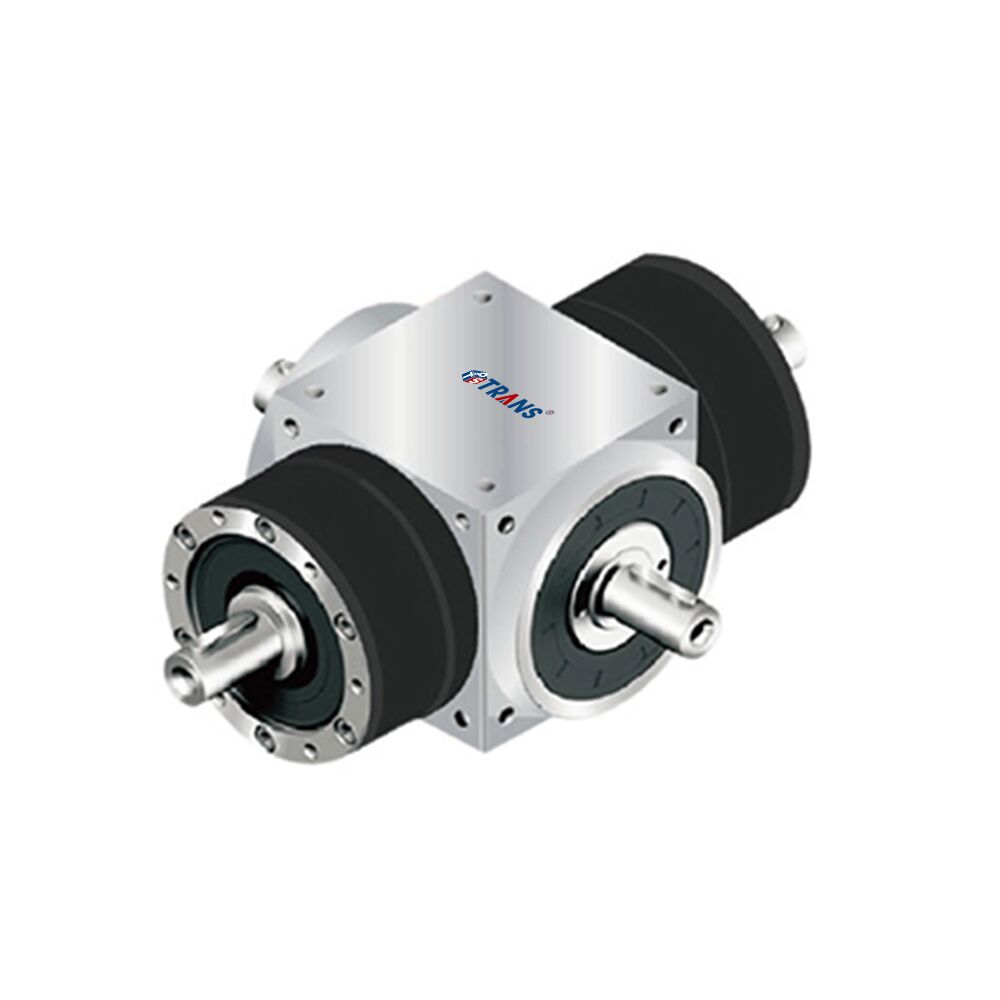

Four Shaft Output 90 Degree Gearbox

Features of AT-4M Right Angle Spiral Bevel Gearbox

Low noise
Compact Structure
Easy Installation
Output Nominated Torque T2N: 12 Nm – 3,200 Nm
Speed Ratio: 1-stage for 1
Low backlash: ≤6arcmin
High Efficiency: 1-stage ≧ 98%

Description of AT-4M High Precision Spiral Bevel Gearbox

The TRANS AT-4M series steering gearbox is a 1:1 ratio servo gearbox with a design of spiral bevel gears inside. It features four drive shafts joined by three spiral bevel gears. The special design of the AT-4M spiral bevel gearbox is suitable for operations of continuous operation mode (S1) and cycle operation mode (S5). AT-4M right-angle gearboxes are widely used in line shaft applications and especially for servo applications.

TRANS provides nine models for your choice: AT065 4M, AT075 4M, AT090 4M, AT110 4M, AT140 4M, AT170 4M, AT210 4M, AT240 4M, AT280 4M.
