Flange Input Single Shaft Output Gearbox

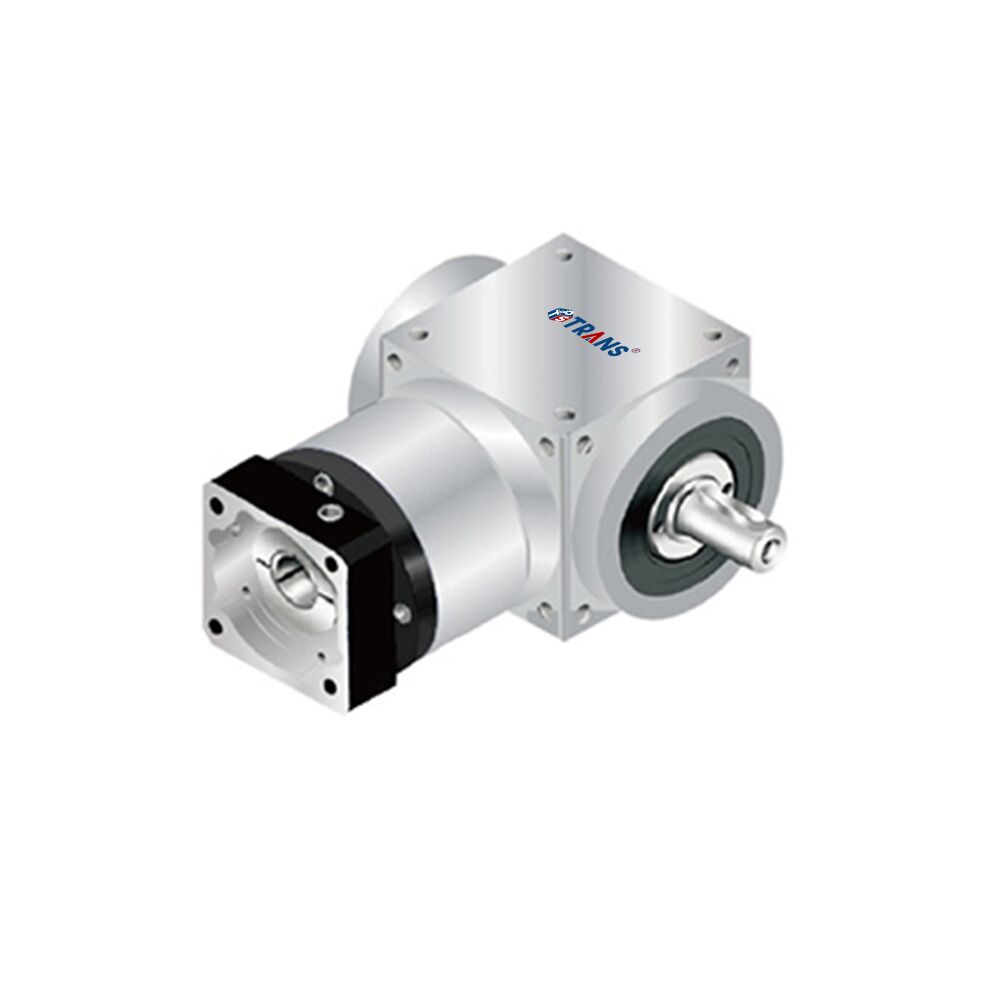

Overview of AT-FL1/R1 Speed Reducer

Single shaft output configuration.
Right (AT-FL1) or left (AT-FL1) output shaft for selection.
3 Stages with a reduction ratio from 1~500.
Nine models for 1-stage and 2-stage steering gearbox, six models for 3-stage reducer.
Flange input type of servo gearbox.
6~10 arcmin backlash with different reduction ratios.
High torque up to 8000 Nm and high efficiency of 98%.

Description of AT-FL1/FR1 High Precision Servo Gearbox

The TRANS AT-FL1/AT-FR1 series planetary gearbox is a servo speed reducer with a single output shaft and flanged input configuration on the motor side. AT-FL1/AT-FR1 is a right angle gearbox with spiral bevel gears which contributes to high precision and a high radial load capacity. They are widely matched for all brands of servo motors and stepper motors on the market.

Three stages of right-angle gearboxes are available:

1-stage ( reduction ratio i=1~5 )

Models: AT065 FL1/FR1, AT075 FL1/FR1, AT090 FL1/FR1, AT110 FL1/FR1, AT140 FL1/FR1, AT170 FL1/FR1, AT210 FL1/FR1, AT240 FL1/FR1, AT280 FL1/FR1.

2-stage ( reduction ratio i=7~50 )

Models: AT065 FL1/FR1, AT075 FL1/FR1, AT090 FL1/FR1, AT110 FL1/FR1, AT140 FL1/FR1, AT170 FL1/FR1, AT210 FL1/FR1, AT240 FL1/FR1, AT280 FL1/FR1.

3-Stage ( reduction ratio i=75~500)

Models: AT110 FL1/FR1, AT140 FL1/FR1, AT170 FL1/FR1, AT210 FL1/FR1, AT240 FL1/FR1, AT280 FL1/FR1.
