Details:

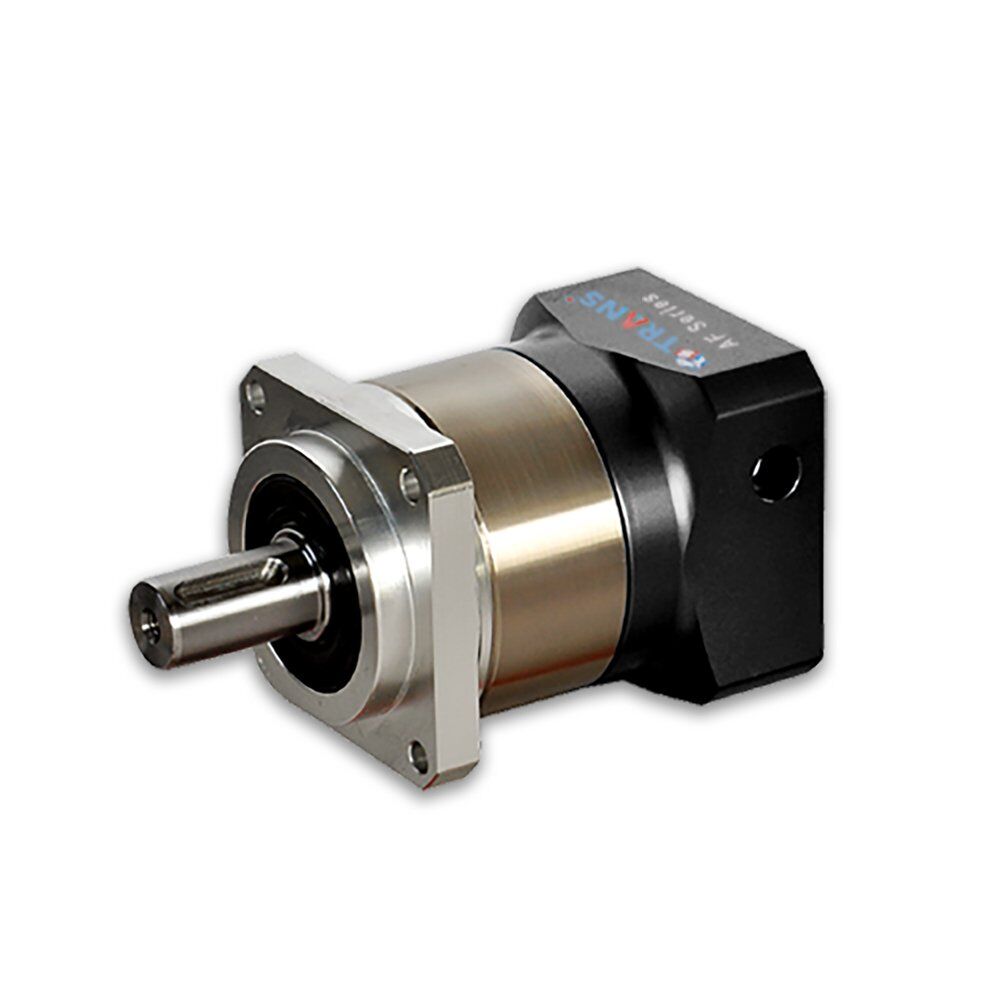

Introduction of AF Planetary Gear Box

TRANS AF series precision planetary reducers belong to a kind of cost-optimized inline planetary gearbox with flange, which offers an economic solution for your motion control or transmission system needs. This Series offers the right design for customers who have the requirement of in-line applications. They can simplify the clamping system between the motor shaft and the gears, and the output torque will be reduced to the standard level so that the speed ratio is reduced. If you don’t have enough budget but still require the precision and good performance of the speed reducers, then these series of planetary gearboxes are what you find.

For standard planetary gearbox is designed with single-stage with the reduction ratio i = 3,4,5,6,7,8,9,10. MKD also provides customers with economic planetary gearboxes with two-stage and three-stage design with reduction ratio i = 12, 15, 16, 20, 25, 28, 30, 35, 40, 50, 70, 80, 100 and ratio i =60, 64, 72, 80, 90, 100, 120, 144, 150, 160, 180, 200, 240, 258, 288, 320, 384, 512, 600, 800, 1000 separately.

Three output types for your choice: shaft output without a key, shaft output with a key, hollow output shaft.

Parameters:
