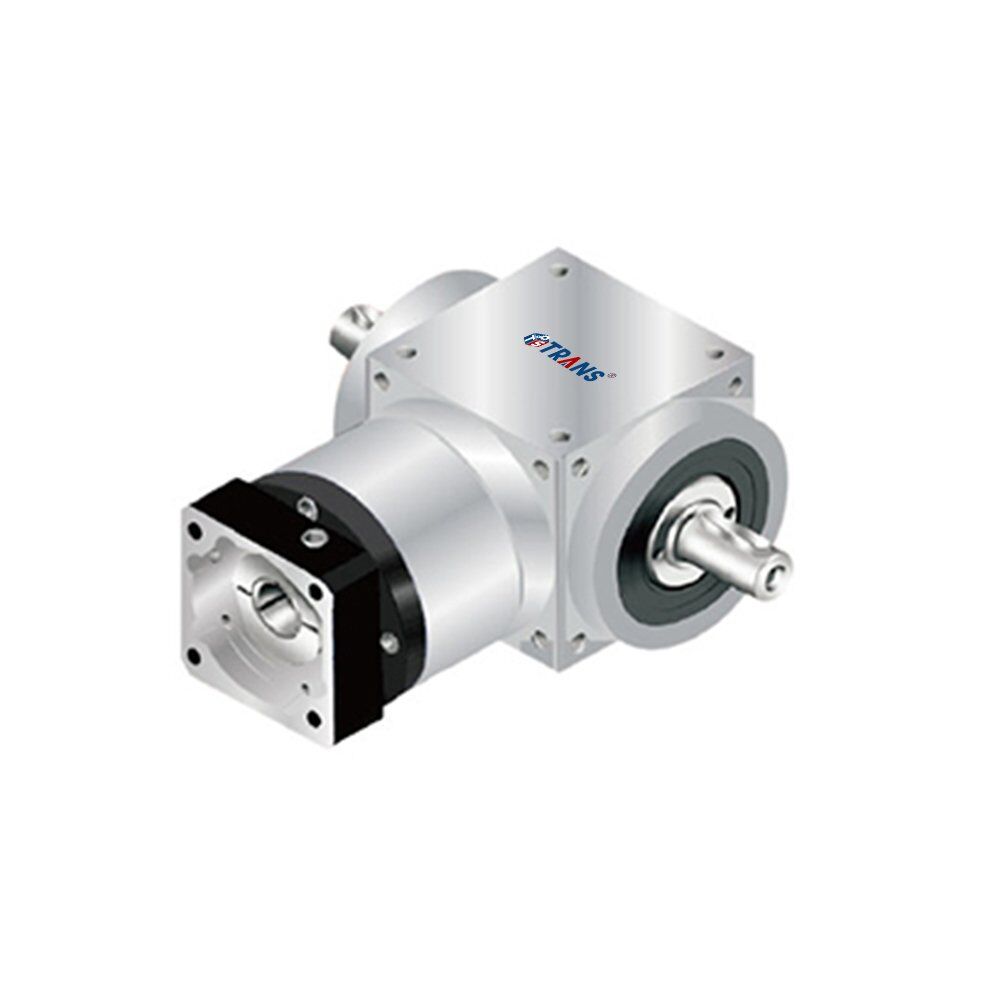

Flange Input Two Ouput Shaft 90 Degree Gearbox

Overview of AT-FL Right Angle Gearbox

Single-stage with ratio i=1~500
Double output shaft type of steering gearbox
Input flange configuration
Nine models for selection AT-065FL, AT075FL, AT090FL, AT110FL, AT140FL, AT170FL, AT210FL, AT240FL, AT280FL.
Precision: Backlash of speed ratio 1~5 is within 6 arc min. The backlash of speed ratio 7~50 is within 8 arc min. The Backlash of the speed ratio of 75~500 is within 10 arc min.
Max. Torque: 1700~7500Nm for speed ratio 1~5 (1-stage); 3600~8000Nm for speed ratio 7~50 (2-stage); 6000~8000 for speed ratio 75~500 (3-stage)

Description of AT-FL High Precision Spiral Bevel Gearbox

The TRANS AT-FL series planetary gearbox is a kind of servo gearbox, especially for servo applications. It features a right-angle outline with spiral bevel gears transmission mechanism. And AT-FL speed reducer is designed with double shafts output and flange input configuration. They are also widely used in transmission solutions applications.
