● Space-saving
The straight cross reducer uses spiral bevel gear. The installation of the motor can achieve 90-degree bending and save the installation space.
● High rigidity & torque
The use of integral needle roller bearings greatly improves the rigidity and torque.
● No grease leakage
The use of grease with high viscosity which is not easy to separate effectively prevents grease leakage.
● Convenient maintenance
No need to replace the grease in the product life period and the installation is more convenient.

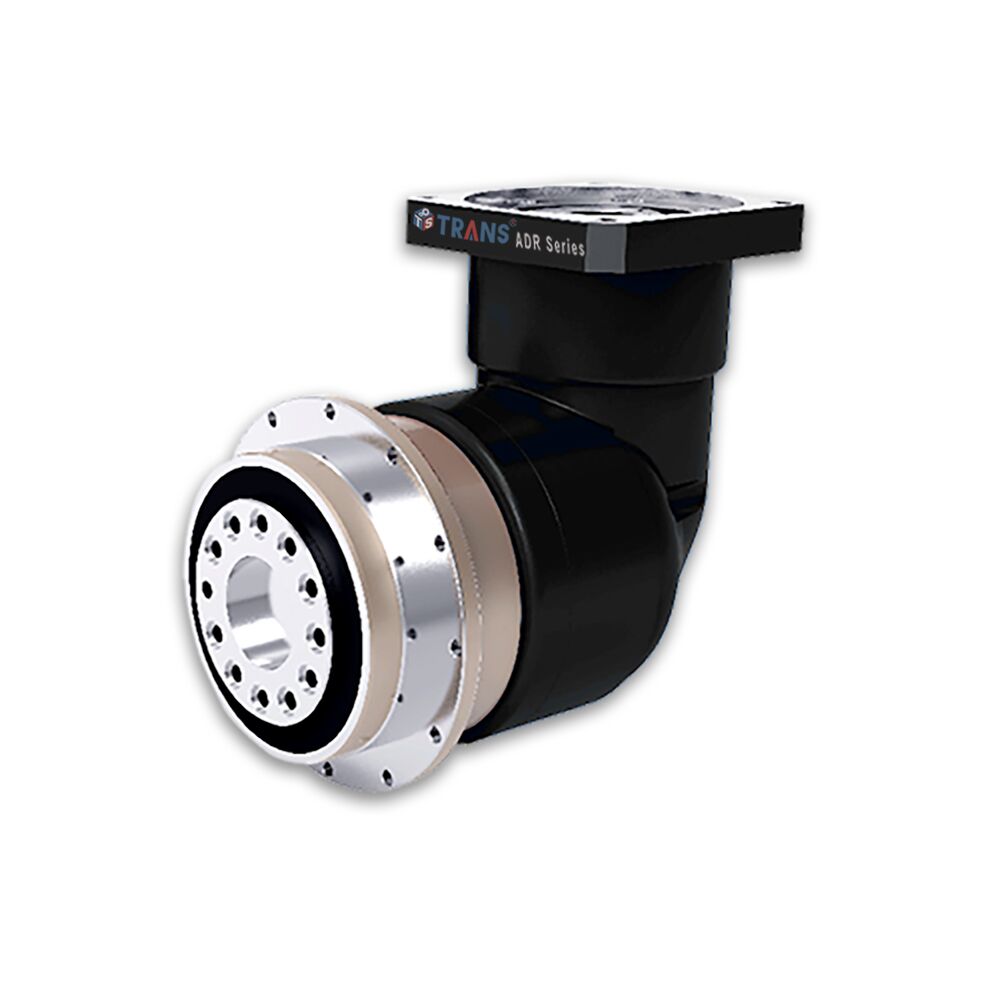

The ADR Series is a flange output right angle planetary gearbox that features of advantages of compact and high performance. The design of the angle can save installation space. The output flange allows mechanical components such as pinions, pulleys, rotary indexing tables, and drive shafts to be easily and directly connected to the output. This kind of design guarantees higher stiffness and torsion for improving machine performance.
The ADR series create a new standard for servo motor gear reduction applications that need additional torsional stiffness and high precision. The ADR right angle gearbox offers seven different frame sizes with ratios from 3 to 100. Compared with our competitors for the same frame sizes, including tapered roller bearings, our ADR gearbox has better radial and axial load handling features, so that can increase the rated value of each performance.
ADR gearbox features a higher precision with backlash within 1 arcmin for one stage. P0 (micro backlash), P1(precision backlash), and P2 (standard backlash) are available for selection for your different applications. It is widely applied in packaging machinery, filling equipment, metal forming, packaging machinery, and assembly automation systems.
China professional motion control products manufacturer with more than 15 years. Fast lead time. Free technical support with 2D & 3D drawings. High cost-performance.
