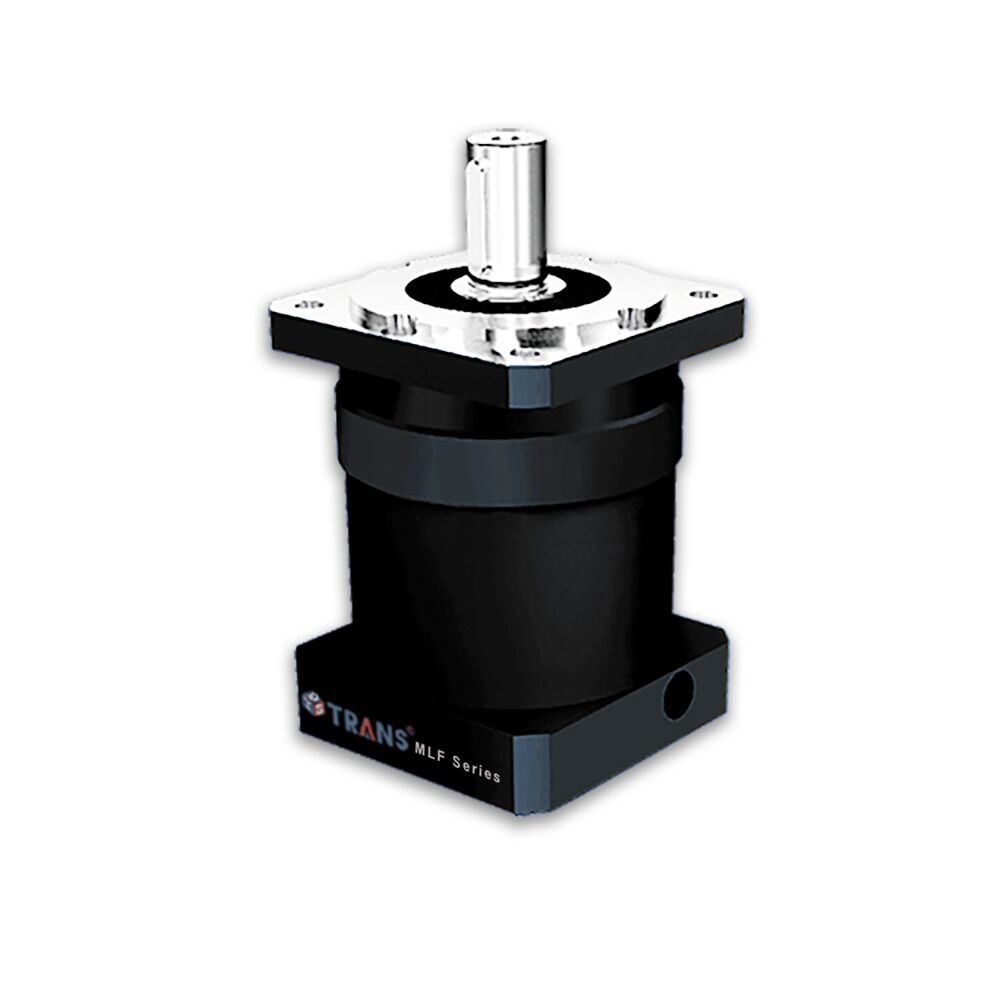

Introduction of MLF Economic Planetary Gearboxes

TRANS MLF series precision speed reducers belong to a kind of cost-optimized inline planetary gearbox with flange, which offers an economic solution for your motion control or transmission system needs. This Series offers the right design for customers who have the requirement of in-line applications. They can simplify the clamping system between the motor shaft and the gears, and the output torque will be reduced to the standard level so that the speed ratio is reduced. If you don’t have enough budget but still require the precision and good performance of the speed reducers, then these series of planetary gearboxes are what you find.

For standard planetary gearbox is designed with single-stage with the reduction ratio i = 3,4,5,6,7,8,9,10. TRANS also provides customers with economic planetary gearboxes with two-stage and three-stage design with reduction ratio i = 12, 15, 16, 20, 25, 28, 30, 35, 40, 50, 70, 80, 100 and ratio i =60, 64, 72, 80, 90, 100, 120, 144, 150, 160, 180, 200, 240, 258, 288, 320, 384, 512, 600, 800, 1000 separately.

Besides, there are three kinds of output shaft keyway: S1. Solid output shaft without keyway; S2. Standard type with a key and keyway. S3. The output is for holes. Normally, we offer planetary reducers with S2 standard type of output shaft, which is produced with key and keyway. If you have a special requirement for the output shaft keyway, please kindly inform us in advance.
