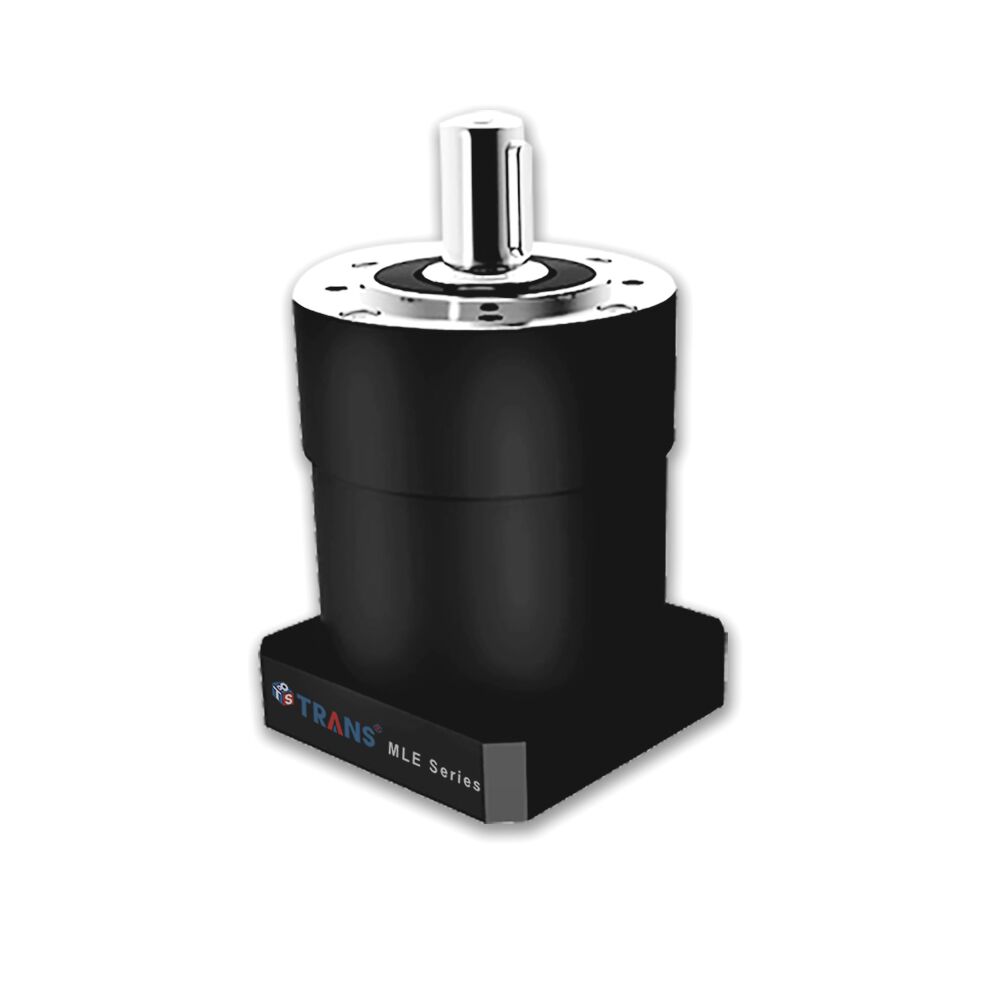

MLE Series Planetary Gearbox

Features of MLE Planetary Gearboxes

Extremely light and powerful
Low backlash(3~8 arcmin)
High quality with an economic price
Low friction bearing design
High output torque(3 times of nominal output torque)
High efficiency (1-stage 96%, 2-stage 94%, 3-stage 90%)
Low noise(60DBA)
Flexible mounting position
Easy to connect with the motor
Optimized lubrication with free maintenance
Download Catalog Here

Description of PLE Economic Servo Planetary Gearbox

TRANS MLE series planetary reducer is a kind of spur gearbox that is designed especially for stepper motor and servo motor. TRANS MLE planetary gearboxes are standard type and cost-saving precision gearboxes for customers who have a limited budget. This series gearbox has a cycloid main body and it is designed without flange to meet different requirements of customers. TRANS spur gear planetary gearboxes to have speed ratios from 3-100 and with input stair diameters from φ30-150mm, which can greatly meet customers’ different application needs. For more detailed dimensions, please download the TRANS product catalog from the website. These precision gearboxes are widely matched with servo motors or stepper motors of brands like Panasonic, Fanuc, SIEMENS, Matsushita, Mitsubishi, Lenz, Yaskawa, etc.
