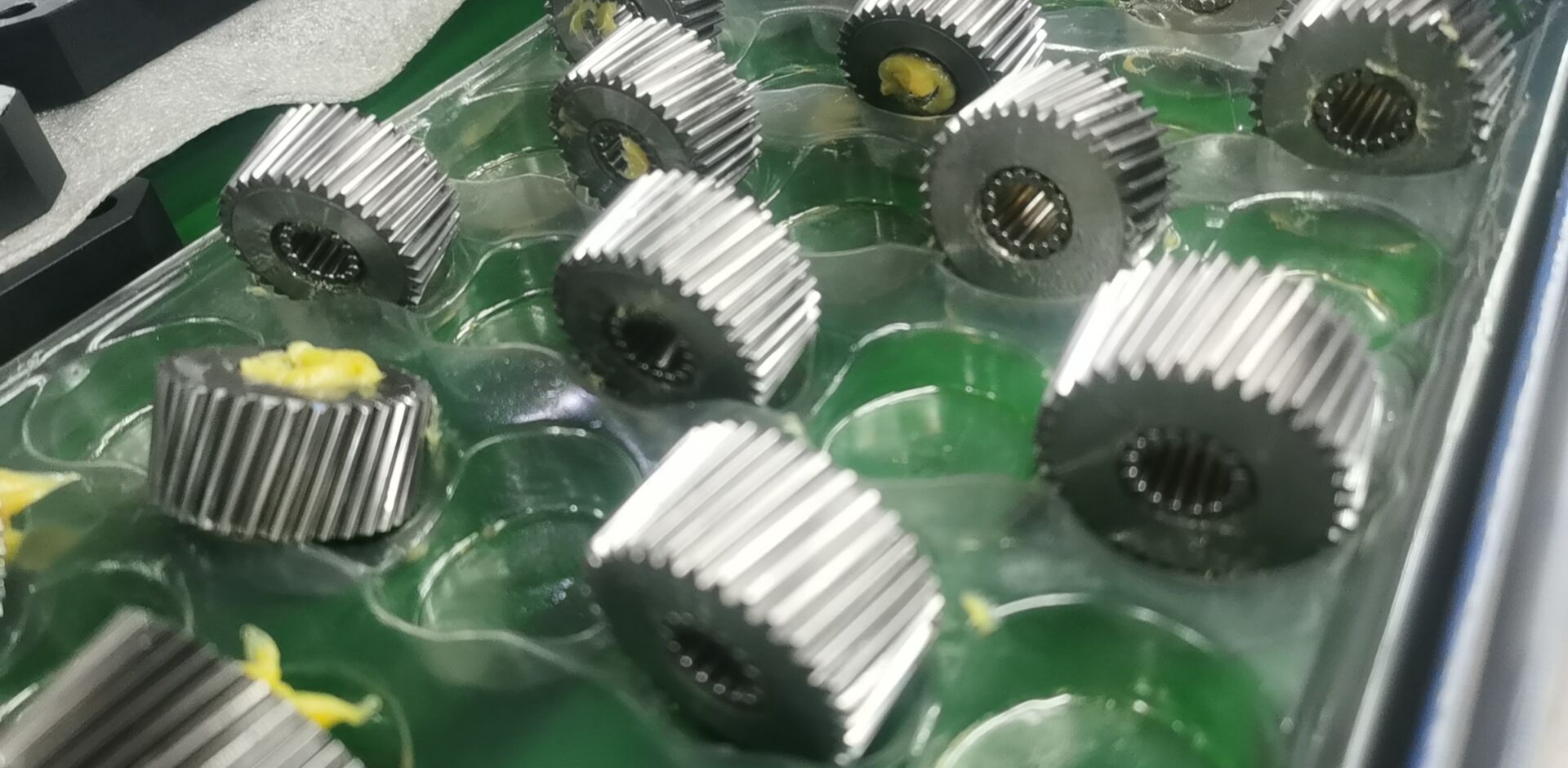

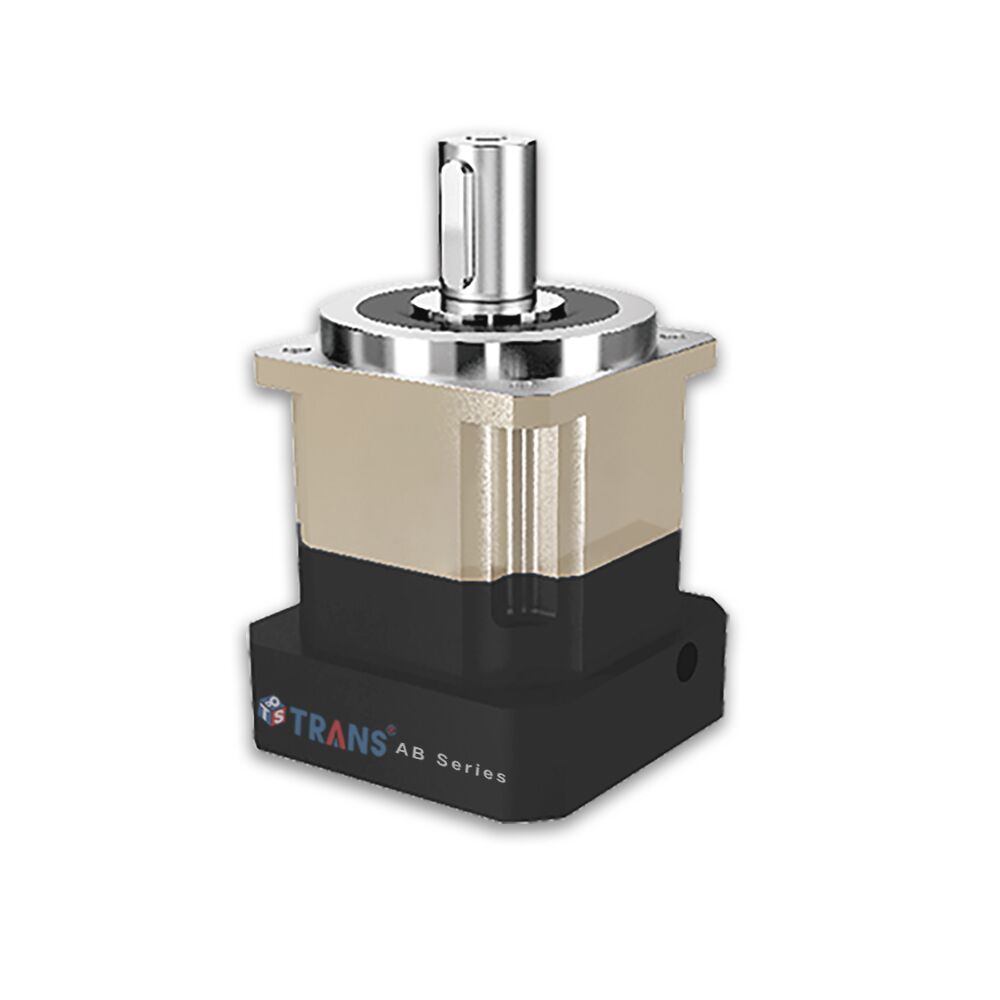

TRANS AB series planetary gearbox is a high-precision reducer. This series is the most popular series among customers. Its output shaft and planet carrier are integrated, and the helical gear design ensures the high rigidity of the reducer. The planetary bearing is with a full-needle structure, and the input shaft and the sun gear are integrated to ensure high rigidity. The gear ring and the nickel-plated shell are integrated, which is easy to dissipate heat. The structure supported by three bearings ensures high co-axiality. The accuracy of the gearbox will not decrease because of long-term operation. The special input base design makes TRANS planetary gearboxes match any brand of servo motor and stepper motor.

TRANS has single-stage and dual-stage speed ratios to choose from. single-stage speed ratios include 3:1, 4:1, 5:1, 6:1, 7:1, 8:1, 9:1, 1:10 .

The planetary gearbox with a single-stage reduction ratio has only one gear set, and the output efficiency can reach 97%.

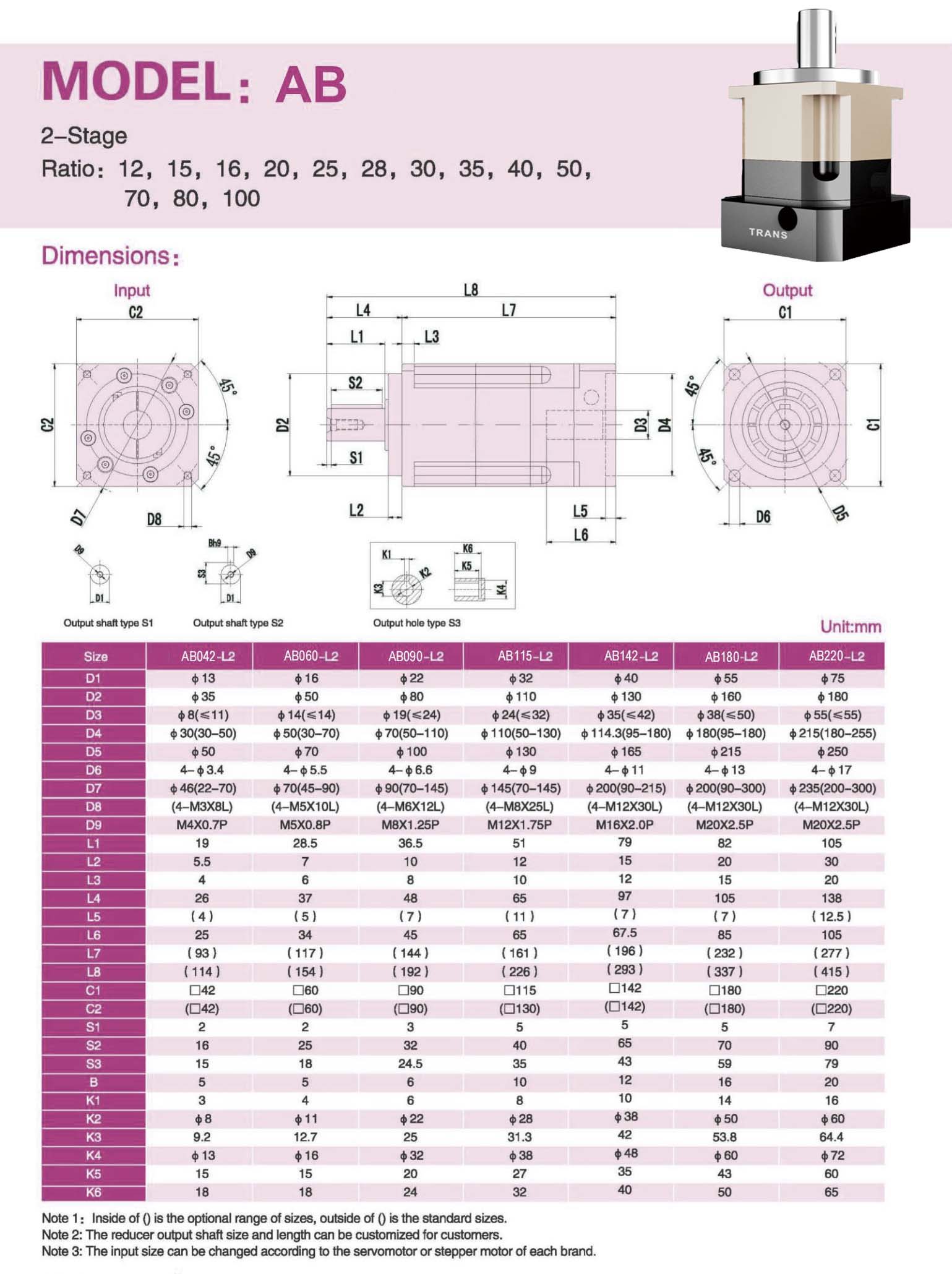

Two-stage reduction ratios are: 12:1, 15:1, 16:1, 20:1, 25:1, 28:1, 30:1, 35:1, 40:1, 50:1, 70:1.

The two-stage planetary gearbox has two gear sets, and the output efficiency is as high as 94%.

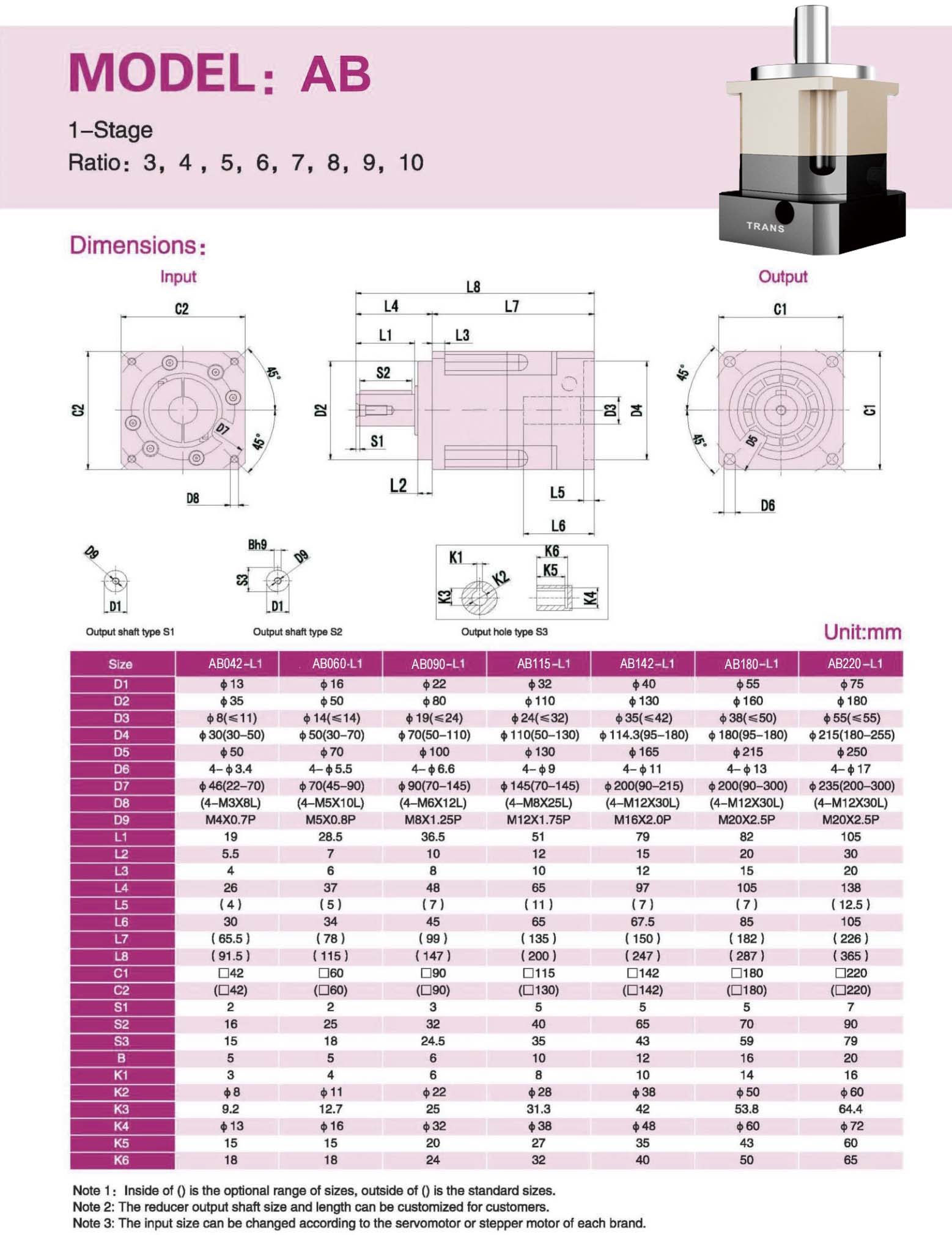

The input sizes of the gearbox can be varied according to the sizes of the servo motor or stepper motor. The output shaft of the gearbox can be customized in size and length for customers. In our catalog, those outside the brackets are the standard sizes, and those inside the brackets are the optional size ranges.

Models available: AB042, AB060, AB090, AB115, AB142, AB180, AB220

Welcome to consult us for model selection.

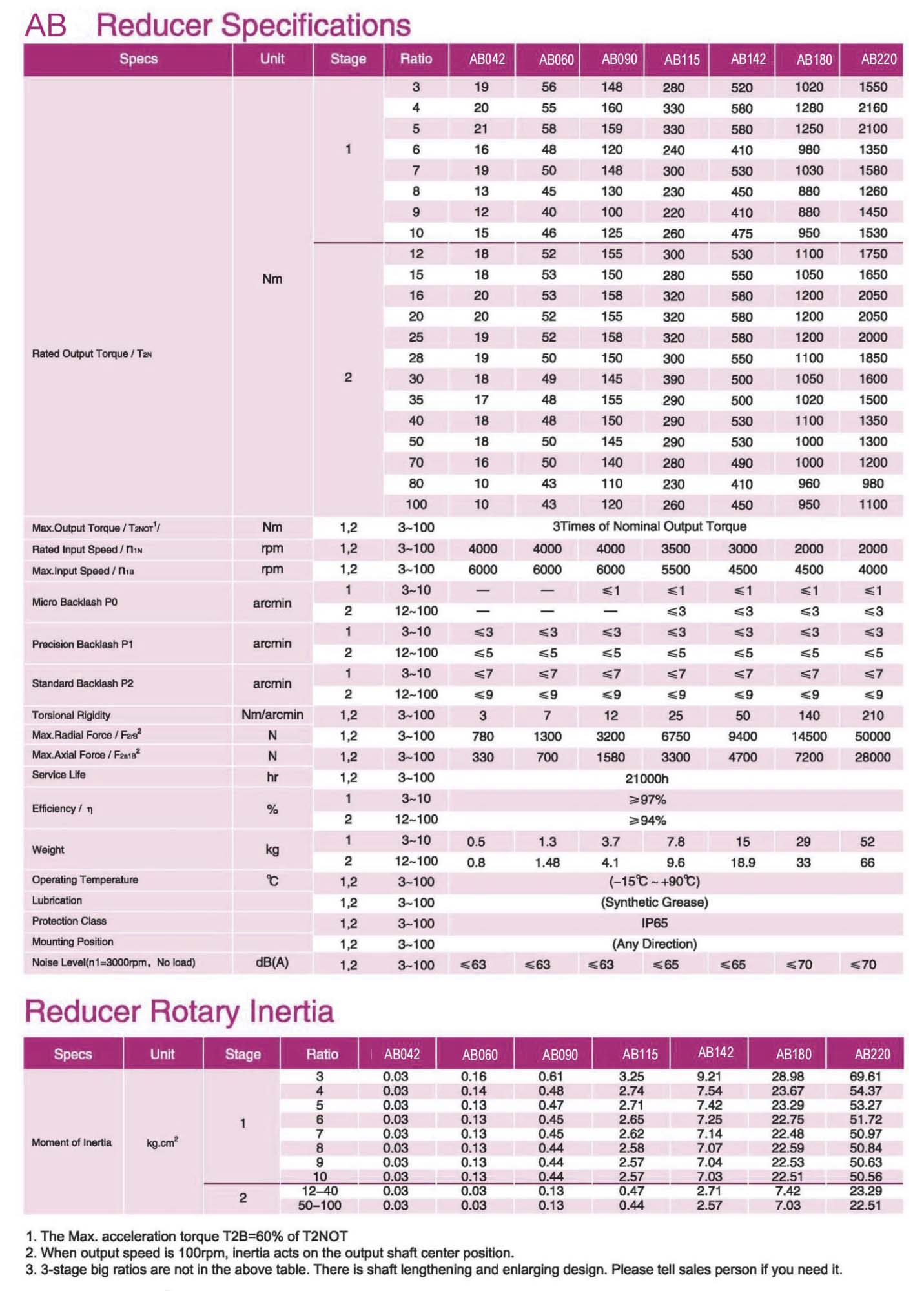

Parameters
